| Automatic carton Closing Sealer Machine Automatically close the top side flaps of the carton box, and seal the tape on both the top and bottom of the carton box simultaneously. When replacing carton boxes of different sizes manual adjustment of the machine is required. |
 |
 |
Drive Belt
Adopting wear-resistant, widened
and thickened belts, the carton
box has more power when moving
forward, doesn’t wear the carton
box,has a long service life.
|
| Manual adjustment wheel When replacing carton boxes of different widths, manually adjust the handwheel to adapt the drive belts on both sides to the current width of the carton box. |
 |
 |
Scale reference According to the height of the carton ,manually adjust the handwheel to adjust the machine height to the same position as the scale and carton height. |
| Quality Cylinder After connecting the air source, the cylinder will be used to automatically close the front and rear flaps of the carton box. |
 |
 |
Stainless Steel Metal Guide Rod Automatically close the top side flaps of the carton box before tape sealing |

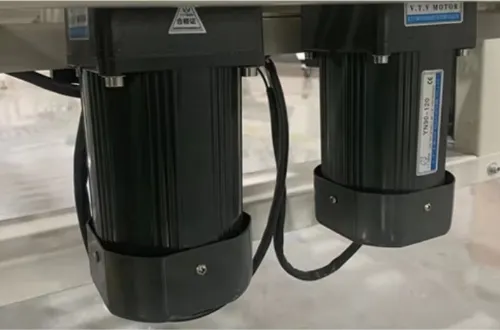

| High Quality Motor Dual drive motor, powerful, silent and energy-saving, long service life. |
 |
 |
Screw and Chain Using high-quality chains and precise thread design to ensure stability during machine operation. |
|
Product Name
|
Automatic Carton Sealer
|
|||
|
Model
|
XC-AT5050
|
|||
|
Approved CE
|
Yes
|
|||
|
Carton size
|
L200-600*W120-500*H120-500mm
|
|||
|
Table height
|
630-700mm adjustable
|
|||
|
Working efficiency
|
20m/min
|
|||
|
Air supply
|
0.5-0.7Mpa
|
|||
|
Width of adhesive tape
|
3inches or 2inches
|
|||
|
Voltage
|
AC110-240V 1Phase 0.4kw 50/60Hz
|
|||
|
Machine dimension
|
L1800*W1020*H1450mm
|
|||
|
Machine weight
|
260Kg
|
|||
